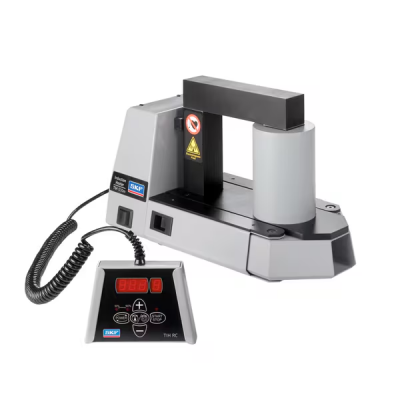

Musktool-SKF TIH 030M/230V Small induction heater
Product Overview

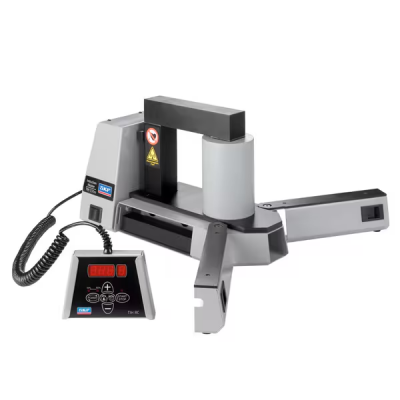

The small induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications. Supplied with three yokes and foldable support arms, the heater is capable of heating bearings with a bore diameters of 20 mm or more and with a maximum weight of 40 kg. It adopts automatic temperature control or time-controlled heating function, making it convenient and safe to use; automatic demagnetization can reduce the risk of bearing contamination; it is suitable for non-bearing applications where the workpiece weight does not exceed 20 kg; the automatic temperature holding function can maintain the bearing temperature after completing the heating cycle |
Technical spedifications
Type | Induction heater, workshop workbench |
Series | MWTIH 030M |
Heating method | Induction, low frequency |
Suitable for installation | Yes |
Suitable for uninstallation | None |
Weight of solid workpiece (maximum, installed) | 40 kg |
Bearing weight (maximum) | 40 kg |
Workpiece aperture (installation) | 20 – 300mm |
Outer diameter of the workpiece | 32 – 500mm |
Power consumption (maximum value) | Abbreviation of 2 kVA |
Workpiece width (maximum) | 100 mm |
Workpiece cross-sectional height (maximum value) | 135 mm |
Running area height | 135 mm |
coil diameter | 95 mm |
Magnetic yoke storage | Yes, internal |
voltage | 200-240v |
Voltage frequency | 50/60Hertz |
Current (maximum value) | 10 A |
Temperature measurement | K-type magnetic probe |
Number of temperature sensors | 1 |
Demagnetization after heating | Yes |
Misleading code | Yes |
Thermal overload protection | Yes |
Bearing support arm | Yes, it can be folded |
Display | 7-segment LED display screen |
forced air cooling | None |
Power setting | 50%, 100% |
Thermometer mode | Yes |
Time pattern | Yes |
Remote Control Panel (Wiring) | Yes, with an LED display |
Heating time control | 0 – 3600s |
Heating time gradient | 6 s |
Heating temperature control | 20 – 250°C |
Heating temperature gradient | 1 °C |
Bearing housing material | Steel; glass fiber filled polyamide |
Color | Grey; Black |
Content | Heater Remote control Temperature probe (TIH P20) 3 standard yokes (TIH 030-Y7, TIH 030-Y4, TIH030-Y2) 1 pair of heat-resistant gloves (TMBA G11) 1 tube of anti-shake paste (LAGF 3E/0.035) 1 hose power plug |
