Musktool-MWTIH030M bearing heater Bearing Induction Heater

2026-03-20 12:00:48

Main Features : Musktool-MWTIH030M bearing heater Bearing Induction Heater
Serial No. : Owen0510

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

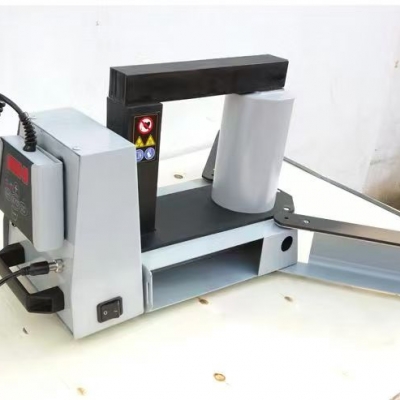

Musktool-MWTIH030M bearing heater Bearing Induction Heater

Product Overview

MWTIH030M Intelligent Induction Heater: a medium-sized induction heating device specially designed for precision assembly and disassembly. It is driven by standard 220V civil/industrial voltage, with an output power of 2.0KVA, and can easily handle annular workpieces with an inner diameter of 20mm to 300mm and a width not exceeding 175mm. Its wide range of applications and stable heating performance make it an ideal choice for the hot fitting process of metal parts such as bearings and gears.

Product Technical Features

Moderate power, high-efficiency output With a rated power of 2.0KVA, it can not only provide sufficient heating capacity to ensure work efficiency but also take into account energy consumption and economy, making it suitable for frequent heating operations of small and medium-sized workpieces.
Wide inner diameter range, strong compatibility The range of workpiece inner diameters that can be processed is 20-300mm, which is extremely large. This means that from small bearings to large gears, heating can be completed on the same equipment, achieving multiple uses in one machine.
Clear width, precise adaptation The maximum heating width is 175mm, which precisely limits the axial dimension of the workpiece, ensuring that the equipment can be adapted to most standard-sized sleeve and ring parts.
Standard voltage, universal and convenient It is driven by a 220V conventional power supply, eliminating the need for specially laying high-voltage or three-phase power for the equipment. It can be plug-and-play in ordinary workshops, maintenance sites, and even some laboratory environments.

Technical Parameters of Bearing Heater：

Model number	MWTIH030M/230V
Power	2.0KVA
Voltage	230V
Frequency	50/60HZ
Heated workpiece inner diameter (mm)	20-300
Maximum temperature ℃	250
Remote control handle	Support
Temperature control	Support
Time control	Support
Manual control	Support
Sound prompt	Support
Temperature display	Support
Automatic demagnetization	Support
Magnetic temperature measuring probe	Support
Automatic power adjustment	Support
