Musktool-ET5410A+ Single-Channel Programmable DC Electronic Load

Key Features

User-friendly Design:

◆ It adopts 2.8-inch TFT LCD screen with rich display contents;

◆ The operation process is simple and convenient, and with visual interface display system, it is

◆ easy to get started.

◆ Key lock function to prevent misoperation;

Ø High-performance load:

◆ It provides CC, CV, CR, CP and CC+CV, CR+CV several basic measurement modes;

◆ It provides professional battery test;

◆ It provides professional LED test;

◆ The Tran test mode can test the dynamic output performance of the power supply;

◆ The scan test mode can test the continuity of power output within a certain range;

◆ The list test mode can simulate a variety of loading status changes;

◆ The short circuit test can be used to simulate load short circuit;

◆ Support external trigger input (DB9 interface is required);

◆ Built-in buzzer alarm;

◆ Maintain data storage in case of power failure;

◆ Remote operation via USB, RS-232 (optional) or 485 (optional) interfaces;

Ø Multiple safety protection:

◆ It provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage

◆ and overcurrent parameters can be set flexibly, so as to effectively protect the load;

◆ It has intelligent fan speed control function, which can effectively reduce the fan noise when it is

◆ working.

◆ With input polarity reverse prompt;

General technical specifications:

◆ Power supply voltage: 100Vac±10%~240Vac±10%，50/60Hz

◆ Display: 2.8-inch TFT LCD screen with resolution of 320×240

◆ Operating temperature: 0℃ to 40℃

◆ Storage temperature: -10℃ to 70℃

◆ Relative humidity: < 80%

◆ Interface: standard USB, optional RS232(or 485)

◆ Size: 90mm×190mm×300mm (width × height × depth)

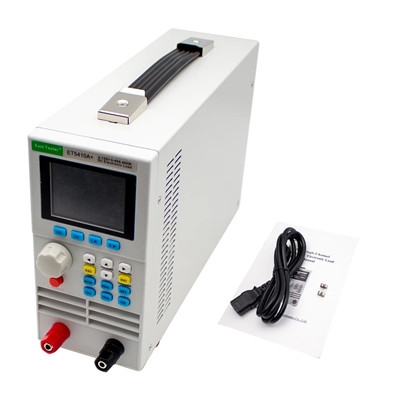

Standard accessories:

◆ Three-core power cord * 1

◆ Power fuse * 2

◆ User manual*

Specifications

MODEL		ET5410A+	ET5411A+		ET5420A+
UPC/EAN		659252932340	659252931473		659252932371
Rated input	Power	400W	400W		400W（Dual-Channel，200W*2）
	Input voltage	0-150V		0-500V	0-150V
	Input current	0-40A	0-15A		0-40A(20A*2)
CV mode	Range	0.1~19.999V,0.1~150.00V	0.1~19.999V,0.1~500.00V		0.1~19.999V，0.1~150.00V
	Resolution	1mV,10mV			1mV，10mV
	Accuracy	±(0.05%+0.02%FS)			±(0.05%+0.02%FS)
CC mode	Range	0~3.000A,0~40.00A	0~3.000A,0~15.00A		0~3.000A，0~20.00A
	Resolution	1mA,10mA			1mA，10mA
	Accuracy	±(0.05%+0.05%FS)			±(0.05%+0.05%FS)
CR mode	Range	0.05Ω~1 kΩ，1 kΩ~4.5kΩ			0.05Ω~1 kΩ，1 kΩ~4.5kΩ
	Resolution	10mΩ，100mΩ			10mΩ，100mΩ
	Accuracy	±(0.1%+0.5%FS)			±(0.1%+0.5%FS)
CP mode	Range	0~400W			0~200W
	Resolution	10mW			10mW
	Accuracy	±(0.1%+0.5%FS)			±(0.1%+0.5%FS)
Tran Test	Mode	CC，CV			CC，CV
	T1&T2	50ms~60s；			50ms~60s
Battery Test	Discharge mode	CC，CR			CC，CR
	Maximumdischarge capacity	9999Ah			9999Ah
	Resolution	1mA，10mA，10mΩ，100mΩ			1mA，10mA，10mΩ，100mΩ
Range of measurement
Voltageread-backvalue	Range	0~19.999V,0 ~150.00V	0~19.999V,0~500.00V		0~19.999V,0 ~150.00V
	Resolution	1mV,10mV			1mV,10mV
	Accuracy	±(0.05%+0.1%FS)			±(0.05%+0.1%FS)
Currentread-backvalue	Range	0~3.000A,0~40.00A	0~3.000A,0~15.00A		0~3.000A,0~20.00A
	Resolution	1mA,10mA			1mA,10mA
	Accuracy	±(0.05%+0.1%FS)			±(0.05%+0.1%FS)
Powerread-backvalue	Range	400W			200W
	Resolution	10mW			10mW
	Accuracy	±(0.1%+0.5%FS)			±(0.1%+0.5%FS)
Scope of protection
Over Voltage Protection(OV)		＞21V OR ＞155V over voltage protection	＞21V OR ＞510V over voltage protection		＞21V or ＞155V over voltage protection
Over Current Protection(OC)		＞3.1 or ＞42A over current protection	＞3.1 or ＞ 16A over current protection		＞3.1A or ＞22A over current protection
Over Power Protection(OP)		410W			210W
Over Temperature Protection		85℃			85℃
