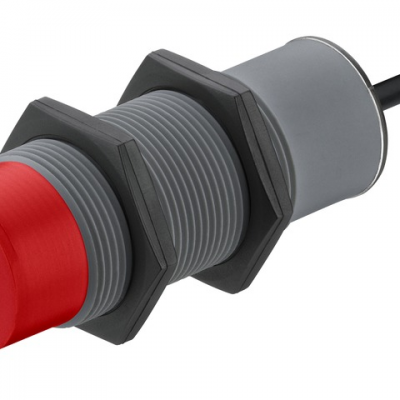

Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628

Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628

Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628

Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628

Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628

2024-07-15 17:16:34

Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628

Main Features :
Serial No. : monica0373

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628

Technology features

Protective circuit	Polarity reversal protection
Protective circuit	Short circuit protected
Switching distance Sn	2 ... 30 mm
Assured switching distance	24.3 mm
Supply voltage UB	10 ... 30 V, DC
Residual ripple	0 ... 10 %
Open-circuit current	10 mA
Temperature drift, max. (in % of Sr)	10 %
Repeatability, max. (in % of Sr)	5 %
Rated operating current	200 mA

Description

Design	Cylindrical
Dimension (Ø x L)	30 mm x 85 mm
Thread size	M30 x 1.5 mm
Type of installation	Non-embedded
Housing material	Plastic
Plastic housing	Polybutylene (PBT)
Sensing face material	Plastic, Polybutylene (PBT)
Cover material	Plastic, Polybutylene (PBT)
Type of display	LED
Operational controls	Multiturn potentiometer (20 turns)
Function of the operational control	Sensitivity adjustment
Switching distance, adjustable	Yes
Ambient temperature, operation	-25 ... 70 °C

Lable: Xtester-LCS-2M30P-N30NNC-K020V Capacitive sensor Part no.: 50136628
