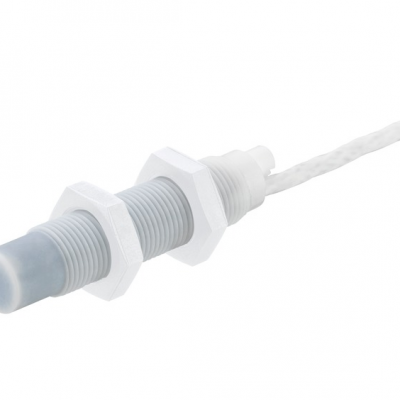

Xtester-LCS-1M30T-N30NNC-K020T Capacitive sensor Part no.: 50135806
Technology features
Protective circuit | Polarity reversal protection |
| Short circuit protected | |
| Switching distance Sn | 2 ... 30 mm |
| Assured switching distance | 30 mm |
| Supply voltage UB | 10 ... 35 V, DC |
| Residual ripple | 0 ... 10 %, From UB |
| Open-circuit current | 18 mA |
| Temperature drift, max. (in % of Sr) | 15 % |
| Repeatability, max. (in % of Sr) | 2% |
| Rated operating current | 300 mA |
| Operational controls | Multiturn potentiometer (20 turns) |
| Ambient temperature, operation | -30 ... 70 °C |
| Switching distance, adjustable | Yes |
| Function of the operational control | Sensitivity adjustment |
Description
Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 72 mm |
| Thread size | M30 x 1.5 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Plastic housing | Teflon (PTFE) |
| Sensing face material | Plastic, Teflon (PTFE) |
| Cover material | Plastic, Teflon (PTFE) |
| Type of display | LED |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature, operation | -30 ... 70 °C |
| Net weight | 142 g |
