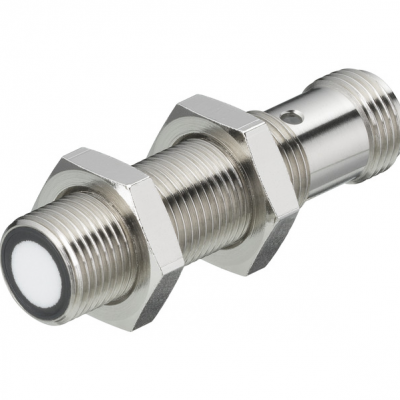

Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584

Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584

Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584

Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584

Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584

2024-07-15 17:24:10

Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584

Main Features :
Serial No. : monica0375

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584

Technology features

Protective circuit	Polarity reversal protection
	Inductive protection
	Short circuit protected
Operating principle	Diffuse reflection principle with background suppression
MTTF	411 years
Contains	2x M12 mounting nut
Operating range	0.015 ... 0.5 m
Operating range	Guaranteed operating range
Ultrasonic frequency	200 kHz
Shape of sound lobe	standard
Direction of beam	Front
Opening angle	3 ... 11 °
Adjustment range	15 ... 500 mm
Supply voltage UB	12 ... 30 V, DC
Residual ripple	0 ... 10 %, From UB
Open-circuit current	0 ... 35 mA
Switching hysteresis	4 %
Resolution	< 0.3 mm
Repeatability	0.5 mm
Temperature drift	2 %
Reference value, temperature drift	End value

Description

Design	Cylindrical
Dimension (Ø x L)	12 mm x 50 mm
Thread size	M12 x 1 mm
Housing material	Metal
Metal housing	Nickel-plated brass
Ultrasonic transducer material	Piezoceramics (contains lead zirconium titanate (PZT))
Net weight	32 g

Lable: Xtester-HTU412B-500/L6T-M12 Ultrasonic sensor Part no.: 50150584
