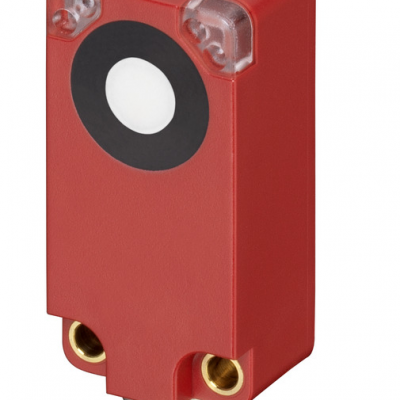

Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576

Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576

Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576

Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576

Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576

2024-07-15 17:27:24

Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576

Main Features :
Serial No. : monica0376

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576

Technology features

Protective circuit	Polarity reversal protection
	Inductive protection
	Short circuit protected
Operating range	0.02 ... 1 m
Operating range	Guaranteed operating range
Ultrasonic frequency	220 kHz
Shape of sound lobe	standard
Direction of beam	Front
Opening angle	1 ... 6 °
Adjustment range	20 ... 1,000 mm
Supply voltage UB	12 ... 30 V, DC
Residual ripple	0 ... 10 %
Open-circuit current	0 ... 35 mA
Switching hysteresis	4 %

Description

Design	Cubic
Dimension (Ø x L)	20.5 mm x 41 mm x 15 mm
Housing material	Plastic
Plastic housing	ASA, PMMA
Ultrasonic transducer material	Piezoceramics (contains lead zirconium titanate (PZT))
Net weight	Net weight
Type of fastening	Through-hole mounting

Lable: Xtester-HTU420B-1000.3/L6-M8 Ultrasonic sensor Part no.: 50150576
