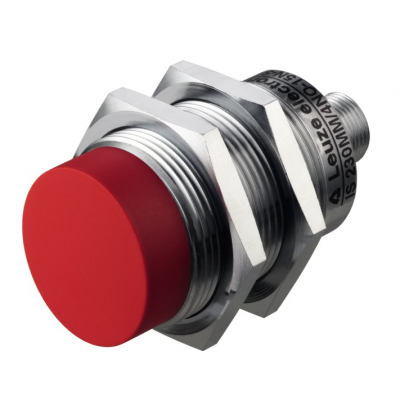

Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094

Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094

Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094

Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094

Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094

2024-07-15 17:12:51

Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094

Main Features :
Serial No. : monica0372

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094

Technology features

Typ. operating range limit Sn	25 mm
Operating range Sa	Operating range Sa
Protective circuit	Overload protection
	Polarity reversal protection
	Short circuit protected
Capacitance: 2n-20n-200n-2μ-20μ-200μF	± 4.0%
Supply voltage UB	10 ... 30 V, DC
Residual ripple	10 %, From UB
Open-circuit current	0 ... 10 mA
Temperature drift, max. (in % of Sr)	10 %
Repeatability, max. (in % of Sr)	1 %
Switching hysteresis	15 %

Description

Design	Cylindrical
Dimension (Ø x L)	30 mm x 79 mm
Thread size	M30 x 1.5 mm
Type of installation	Non-embedded
Housing material	Metal
Metal housing	Nickel-plated brass
Sensing face material	Plastic, Polybutylene (PBT)
Housing color	Red, RAL 3000 Silver
Type of fastening	Mounting thread
Standard measuring plate	75 x 75 mm², Fe360

Lable: Xtester-IS 130MM/4NO-25N-M12 Inductive switch Part no.: 50138094
