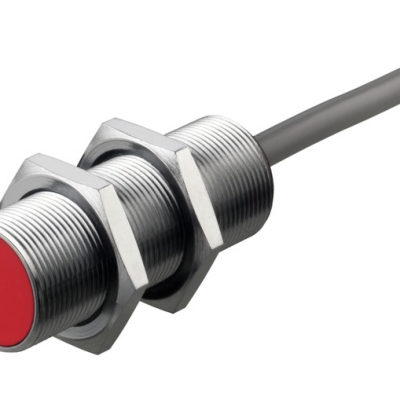

Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949

Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949

Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949

Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949

Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949

2024-07-15 17:08:16

Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949

Main Features :
Serial No. : monica0371

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949

Technology features

Protective circuit	Inductive protection
	Polarity reversal protection
	Short circuit protected
Typ. operating range limit Sn	8 mm
Operating range Sa	0 ... 6.4 mm
Supply voltage UB	10 ... 30 V, DC
Residual ripple	0 ... 20 %, From UB
Open-circuit current	0 ... 10 mA
Temperature drift, max. (in % of Sr)	10 %, Over the entire operating temperature range
Switching hysteresis	10 %

Description

Design	Cylindrical
Dimension (Ø x L)	18 mm x 35 mm
Thread size	M18 x 1 mm
Type of installation	Embedded
Housing material	Metal
Metal housing	Nickel-plated brass
Sensing face material	Plastic, Polybutylene (PBT)
Net weight	108 g
Housing color	Red, RAL 3000 Silver
Type of fastening	Mounting thread
Standard measuring plate	24 x 24 mm², Fe360

Lable: Xtester-ISS 218MM/2NO-8E0 Inductive switch Part no.: 50145949
