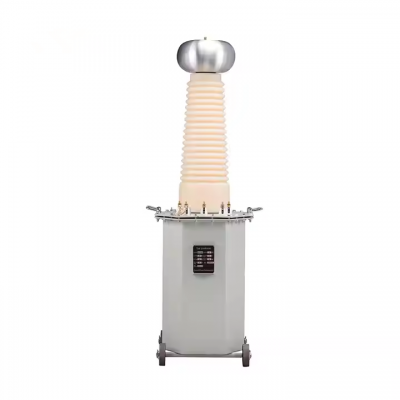

musktool-YDJ60 100kv 10kVA DC Hipot High Voltage Withstand Voltage Tester 100kv 10kVA Oil Immersed AC DC Hipot Test Set

Main Features :
Serial No. : monica0614

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-YDJ60 100kv 10kVA DC Hipot High Voltage Withstand Voltage Tester 100kv 10kVA Oil Immersed AC DC Hipot Test Set

Product Paramenters

specifications and models	capacity(kVA)	High Voltage(kV)	high-tension current(mA)	ow input voltage		ratio of transformation(high /rites)	temperature rise℃(30 minutes)
specifications and models	capacity(kVA)	High Voltage(kV)	high-tension current(mA)	tension(V)	electricity(A)	ratio of transformation(high /rites)	temperature rise℃(30 minutes)
YDJ(Z)-1.5/50	1.5	50	30	200	7.5	500	10
YDJ(Z)-3/50	3	50	60	200	15	500	10
YDJ(Z)-5/50	5	50	100	200	25	500	10
YDJ(Z)-10/50	10	50	200	200	50	500	10
YDJ(Z)-20/50	20	50	400	380	52.6	500	10
YDJ(Z)-30/50	30	50	600	380	79	500	10
YDJ(Z)-50/50	50	50	1000	380	132	500	10
YDJ(Z)-5/100	5	100	50	200	25	1000	10
YDJ(Z)-10/100	10	100	100	200	50	1000	10
YDJ(Z)-20/100	20	100	200	380	52.6	1000	10
YDJ(Z)-30/100	30	100	300	380	79	1000	10
YDJ(Z)-50/100	50	100	500	380	132	1000	10
YDJ(Z)-15/150	15	150	100	380	39.5	1500	10
YDJ(Z)-20/150	20	150	133	380	52.6	1500	10
YDJ(Z)-25/150	25	150	167	380	65.7	1500	10
YDJ(Z)-30/150	30	150	200	380	79	1500	10
YDJ(Z)-50/150	50	150	333	380	132	1500	10
YDJ(Z)-100/150	100	150	667	380	263	1500	10
YDJ(Z)-50/200	50	200	250	380	132	2000	10
YDJ(Z)-100/200	100	200	500	380	263	2000	10
YDJ(Z)-150/200	150	200	750	380	395	2000	10
YDJ(Z)-200/200	200	200	1000	380	526	2000	10
YDJ(Z)-300/200	300	200	1500	380	790	2000	10
YDJ(Z)-50/300	50	300	167	380	132	3000	10
YDJ(Z)-100/300	100	300	333	380	263	3000	10
YDJ(Z)-150/300	150	300	500	380	395	3000	10
YDJ(Z)-200/300	200	300	667	380	526	3000	10
YDJ(Z)-300/300	300	300	1000	380	790	3000	10

Functional & Characteristics

1、High voltage test transformer has excellent material selection，reliable quality，good stability

2、Large voltage margin，Corona ring small，Bureau of dropping

3、New insulation materials are used，small in size，Light weight

Lable: musktool YDJ60 Oil Immersed Hipot Tester
