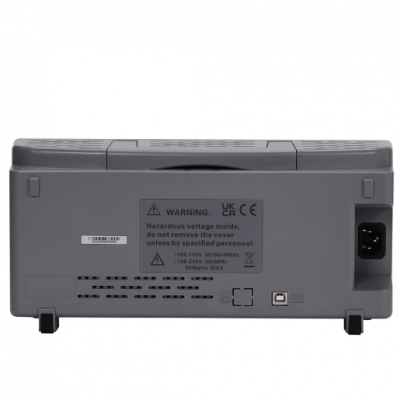

Musktool-YDS2010 Digital Oscilloscope 100MHz Industrial - grade Touchscreen
Core performance
Bandwidth and Sampling Capability: 100MHz analog bandwidth (±3dB), rise time ≤3.5ns, suitable for industrial high-frequency pulse and RF modulation signal measurement; real-time sampling rate up to 1GSa/s, single-channel storage depth ≥1Mpts, capable of capturing long-term waveform at high sampling rate, suitable for complex signal analysis. Signal fidelity: 8-bit ADC resolution, vertical sensitivity 5mV/div~5V/div (1-2-5 step), equivalent input noise ≤200μVrms, low distortion measurement can be maintained even in industrial strong interference environment. |
Industrial Compatibility
Environmental tolerance: Complies with industrial-grade standards, operating temperature-10℃ to 50℃, relative humidity ≤90% (non-condensation), with vibration and electromagnetic interference resistance. The body protection rating reaches IP30, suitable for harsh environments such as workshops and outdoor emergency repairs. Multi-Interface Expansion: Equipped with USB Host/Device and LAN ports, supports waveform storage (CSV/PNG export via USB) and remote control. Some models feature HDMI output for industrial automation testing networking. |
Measurement
Flexible triggering and analysis: supports 8 triggering modes including edge, pulse, and video, with built-in over 30 automatic measurement parameters (voltage, frequency, duty cycle, etc.), and equipped with FFT spectrum analysis function to quickly locate signal distortion and harmonic interference. Calibration and Compatibility: Features a built-in 1kHz standard calibration signal with probe compensation, compatible with 1×/10×/100× attenuation probes, suitable for industrial circuits, embedded systems, and various testing scenarios.。 |
