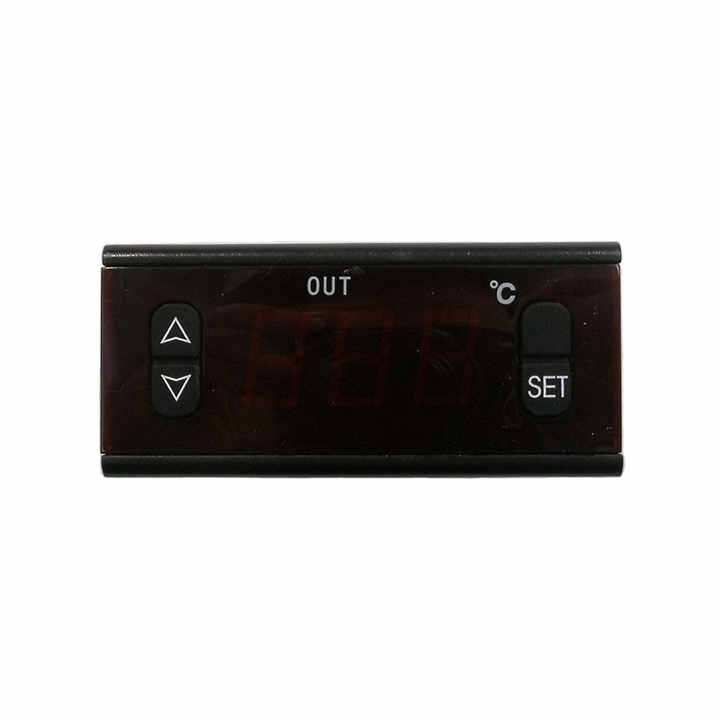

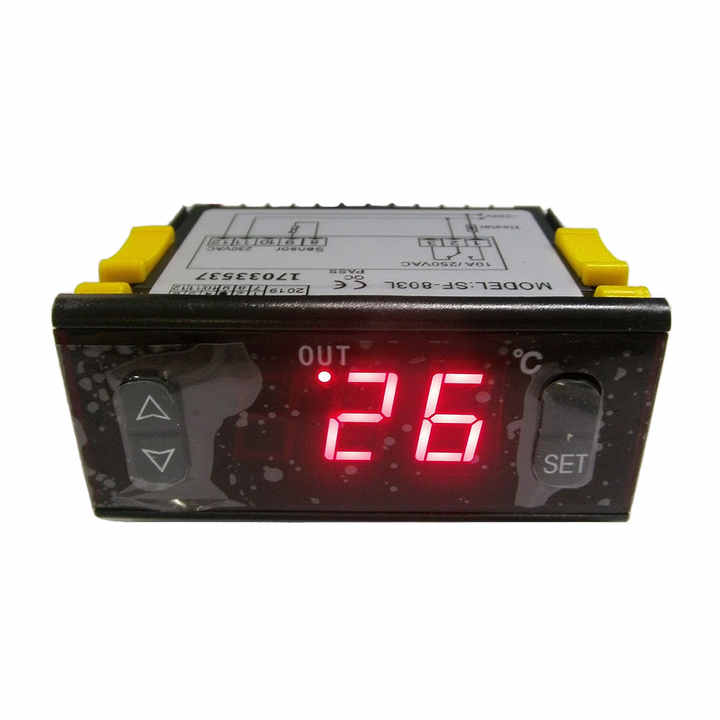

Musktool-SF-803 Mini Heating Element Thermostat Digital High Temperature Control
Product description
| Temperature Control Value Storing Self Testing |
Technical Data

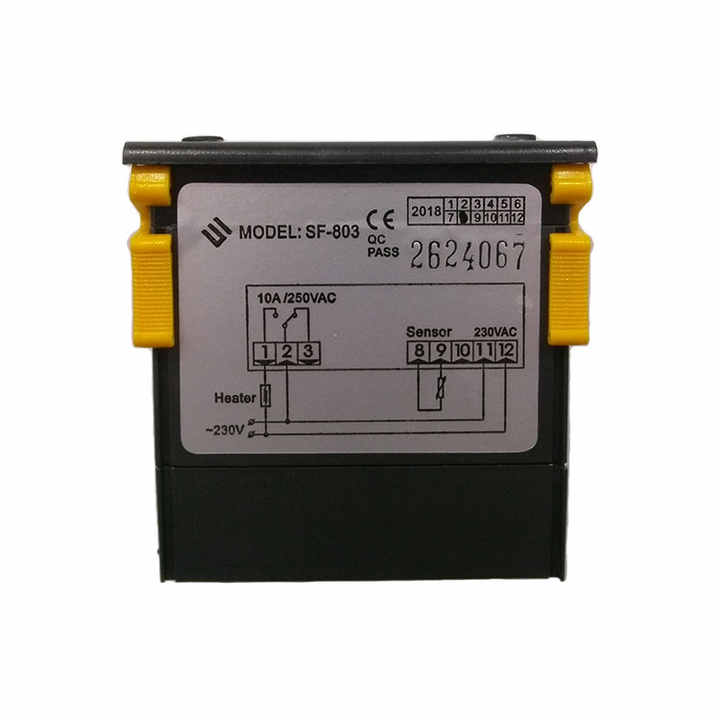

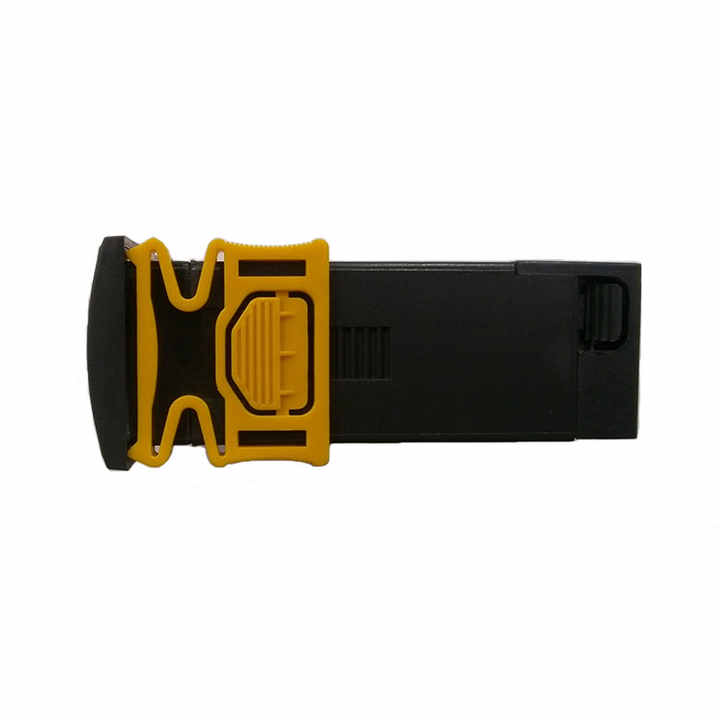

| Range of temperature displayed:-45℃~120℃ Range of set temperature:-40℃~110℃ Accuracy:±1℃ Heater: 10A/250VAC Dimension:77(Length)×35(Width)×60(Depth)mm Mounting hole dimension:71(Length)×29(Width)mm |
Parameter | Function | Set range | Default |
E1 | Lower setpoint limit | -40℃~Set temp. | 0℃ |
E2 | Higher setpoint limit | Set temp.~110℃ | 110℃ |
E3 | Temp.hysteresis | 1~50℃ | 3℃ |
E4 | Start delay time | 0~10Min | 0Min |
E5 | Offset on room temp. | -20~20℃ | 0℃ |
