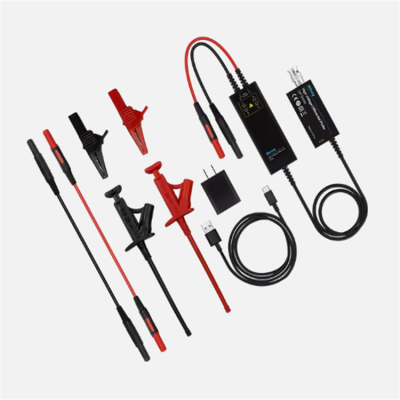

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

2025-07-09 11:27:28

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Main Features :
Serial No. : monica0749

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-DP700 DP Series Oscilloscope High Voltage Differential Probe DP700/DP1500/DP3000 Kit 100MHZ 100X/1000X Updated Version

Product Description

Introduction:

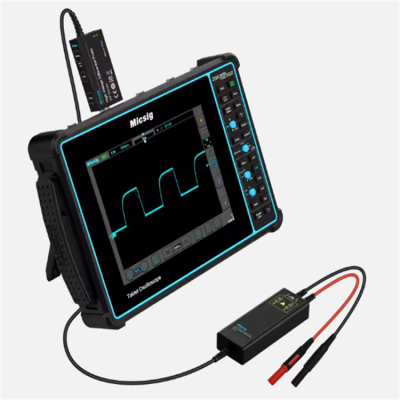

DP Series High Voltage Differential Probes can be used with any brand of oscilloscope.
It adopts high-impedance isolation between the input and output to protect personal safety, converts the input high-voltage signal to a low-voltage signal for observation and analysis on oscilloscope.

*The previous model DP 10007 has been upgraded to DP700.

*The previous model DP10013 has been upgraded to DP1500.

*The previous model DP20003 has been upgraded to DP3000.

Features:

*Light weight and compact size, easy to carry.

*Powered by USB output (DC 5V) from oscilloscope, apply easily to floating measurements.

*Easy self-calibration.

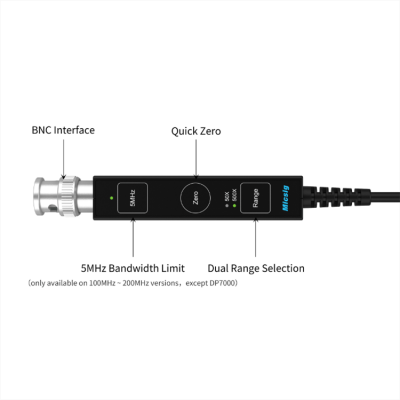

*No mechanical switches, support self-illuminating button.

*USB DC power output, convenient for cascading power supply when multiple probes are used at the same time.

Specification

item	value
Warranty	1 year
Customized support	OEM
Place of Origin	China
	Guangdong
Brand Name	XEAST
Model Number	DP700/DP1500/DP3000
Product name	Oscilloscope probe
Bandwidth	100MHz
Rise time	≤3.5ns
Attenuation	100X, 1000X
Gain accuracy	±2%
Output Voltage	≤ 3V
Power	0.85W
Power supply	DC 5V,USB Supply
Overrange Alarm	Button Light Flashes
Dimension	14.5 * 6 * 2.7cm

Lable: High Voltage Differential Probe
