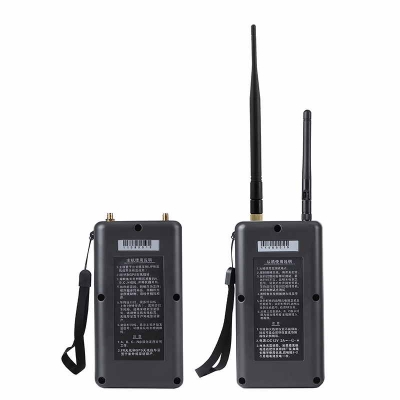

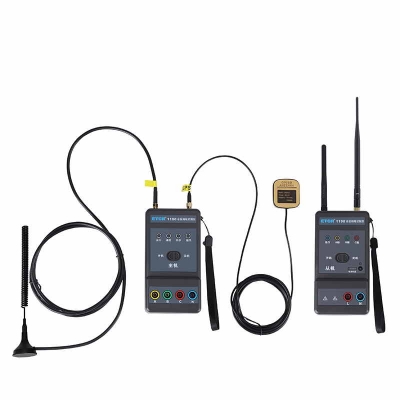

Musktool-ETCR1100A Transformer Distribution Network Phase Line Identify Meter
Introduction
ETCR1100A Transformer Distribution Network Phase Line Identify Meter is a portable power supply phase line identify device, used to identify the phase A, B and C of low voltage power supply lines in the same transformer area. ETCR1100A Phase Line Identify Meter consists of host, slave, RF antenna and test line. Due to urban development and historical reasons, the wiring in the power supply network is relatively chaotic, and the lines from the transformer output to the user cannot distinguish the phases of A, B and C. It make a lot of inconvenience for rush repair, troubleshooting and installation of new technology and new equipment. This instrument via satellite communication and other new technologies, can quickly and accurately identify whether the two points phase lines in a long distance are consistent or not with each other in the same transformer area. The communication distance of the meter is far (up to 8 km), full coverage of transformer area, The phase line can be quickly judged even in the densely building transformer area of the city , which is accurate, intuitive, small in size, easy to carry, safe and fast in operation. Widely used in cable construction, equipment installation, line maintenance work, especially suitable for three-phase unbalanced correction device installation and construction.
|
Technical Specifications
Model | ETCR1100A |
Function | Transformer Distribution Network Phase Line Identify Meter |
Overall Power Consumption | 3W |
Transmit Power | Wireless transmit power 1W |
Communication Distance | No obstacles blocking the communication distance 8km |
Antenna | Host: FR sucker antenna, BD/GPS planar antenna; Slave: FR glue stick antenna, BD/GPS glue stick antenna |
Rate Voltage | Three phase 4-wire: 3X220V/380V |
Frequency | 50Hz |
Identify Time | ≤5s |
Identify Success Rate | >99% |
Slave Device Power Supply | DC 7.4V 2.6Ah rechargeable lithium battery |
Host (Slave) Size | 162mmX85mmX49mm |
Host (Slave) Weight | Host:Approx. 235g; Slave: Approx. 320g |
Total Weight | Approx.2.56KG(include accessories) |
Host Test Line | (Alligator clip + banana plug), Line Length 6M |
Slave Device Test Wire | (Probe + banana plug), Line length 1.5M |
Working Temperature | -10℃~40℃；below 80%RH |
Store Temperature | -10℃~60℃；below 70%RH |
Insulation Strength | AC 3700V/rms ( between the PCB and shell) |

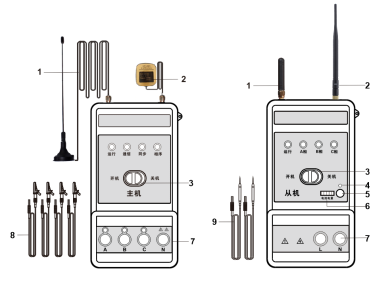

Instrument Structure
1. RF Antenna (Host: sucker antenna; Slave: Glue stick antenna) |
2. GPS Antenna(Host: Planar antenna; Slave: Glue stick antenna) |
3. ON/OFF button |
4. Charger indicator |
5. Charger port |
6. Power indication |
7. Test line terminal |
8. Host test line (Alligator clip +banana plug) 4PCS |
9. Slave test line (Probe + banana plug) 2PCS |

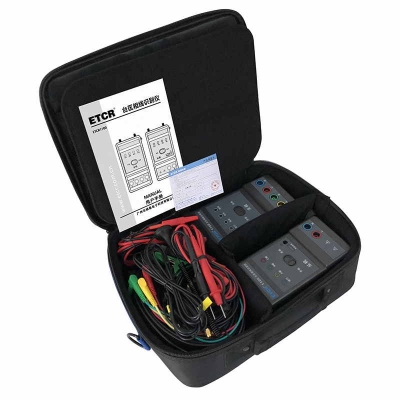

Accessories
Host | 1 PCS | |
Slave | 1 PCS | |
Host Test Line | 1 GROUP | 6M (Alligator clip + banana plug) |
Slave Test Line | 2 PCS | 1.5M(Probe + banana plug) |
RF Sucker Antenna (Feeder line 3M) | 1 SET | Use for host |
BD/GPS Planar Antenna | 1 PCS | Use for host |
RF Glue Stick Antenna | 1 PCS | Use for host |
BD/GPS Glue Stick Antenna | 1 PCS | Use for slave |
Charger(DC 12V) | 1 PCS | |
Instrument Bag | 1 PCS | |
User Manual, Warranty card and quality certificate | 1 SET |
