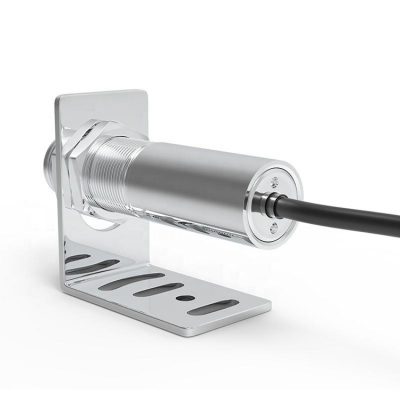

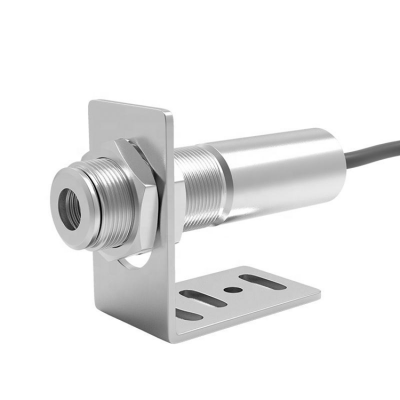

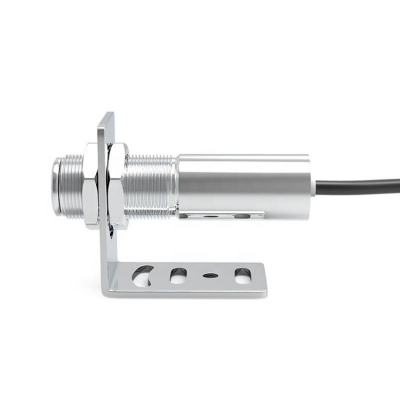

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

2025-09-15 15:00:42

BYD10AS- 4-20MA Infrared Temperature Sensor

Main Features :
Serial No. : CY016

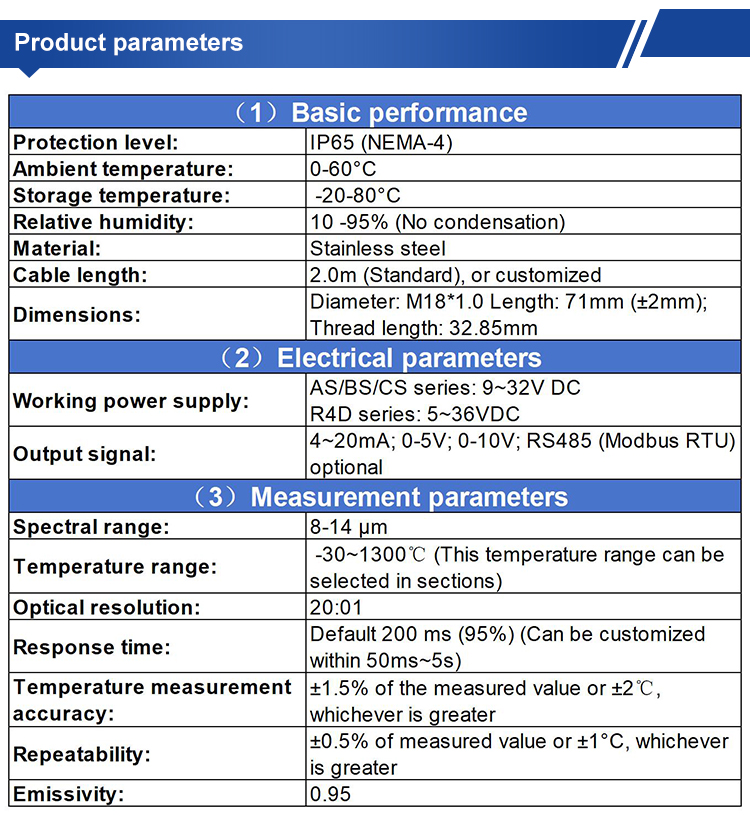

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool -BYD10AS-Portable Size Diameter M18-68MM Stainless Steel 4-20MA Infrared Temperature Sensor

Overview

Protection class	IP65 (NEMA-4)
Ambient temperature	0-60°C
Storage temperature	-20-80°C
Relative humidity	10 -95% (non-condensing)
Material	stainless steel
Cable length	2.0m (standard), or customized
Spectral range	8-14 µm
Temperature range	-30~1300℃ (Optional:0-100℃，-20-100℃,0-150“C, -20-150°C, 0-200 °C, -20-200“C,0-300“C,+17)
Optical resolution	20:1
Response time	Default 200 ms (95%)
Temperature measurement accuracy	±1.5%

Recommended
