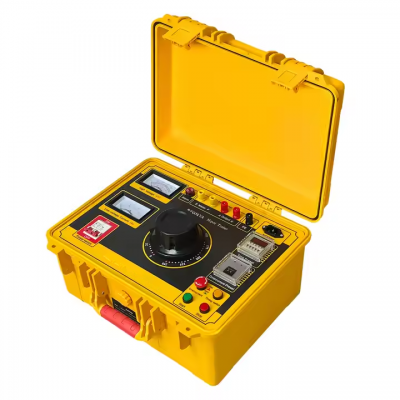

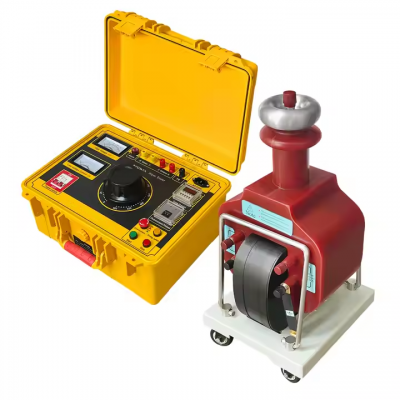

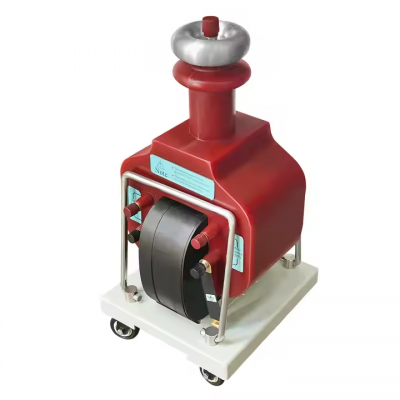

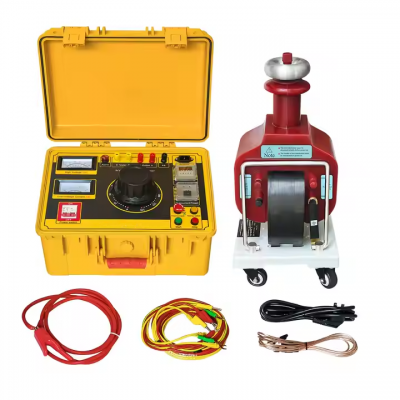

musktool-ADH50KV 5kVA/50kV AC Hipot Test High Potential Test High Voltage Test Transformer High Voltage AC/DC Hipot Testing Set
product characteristics
Ⅰ. The main technical parameter
| 1. Rated capacity: 5kVA |
| 2. Rated input voltage: 200V |
| 3. Rated input current:25A |
| 4. Testing voltage: 50kV |
| 5. Rated output current: 0.1A |
| 6. Instrument voltage: 100V |
| 7. Working time: 1 h |
| 8. Weight: 38kg |
| 9. Dimensions: 330X270X550(mm) |
Ⅱ. General technical indicators
| 1. Output voltage waveform: sine wave. |
| 2. Output waveform distortion rate :≤1%. |
| 3. No-load current and loss: execute according to national standard |
| 4. Inductive withstand voltage level: 1.1Uo/1min. |
| 5. Short circuit impedance of 5 test transformers :4.5%～12%(±10%). |
| 6. Voltage adjustable accuracy is ±1%. |
| 7. Voltage instability is less than 1%. |
| 8. over voltage protection function. |
| 9. Surface temperature rise :<55℃ |
| 10. Under the rated capacity, the allowable continuous running time is 0.5 hours（long time required operating transformer, can be customized） |
| 11. Intermittent running time: Below 10kVA, every 2 hours, allow continuous operation for 0.5 hours Above 15kVA, every 4 hours, allow continuous operation for 0.5 hours |
| 12. At half rated voltage and half rated current, continuous operation is allowed for 4 hours |
