Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

2025-07-30 08:48:33

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Main Features :
Serial No. : monica0915

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-pv-cable-Photovoltaic Cables Solar Dc Pv Wire 4mm 6mm 10mm 16mm Solar Panel Extension Wires Conductor Cable

Product descriptions from the supplier

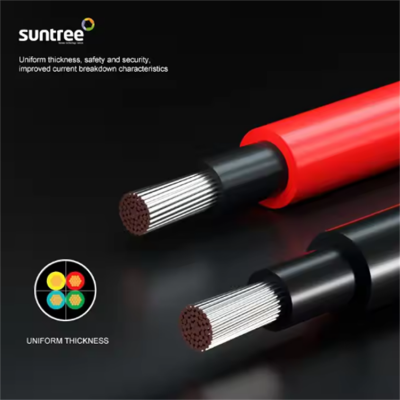

(1) Dual wall insulation,Electron beam cross-linked.

(2) Resistance to UV,water,ozone,fluids,salt,general weathering.

(3) Halogen free,flame,retardant,low toxicity.

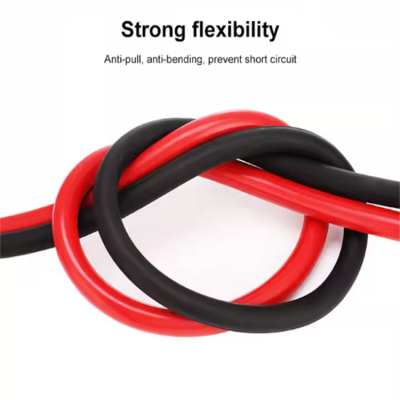

(4) Flexibility and stripping performance.

(5) TUV approved.

(6) High current carrying capacity.

(7) Resistance to abrasion

Product parameters

Single Core	Cross section mm²	Strand design No.x ø(mm)	Conductor diameter mm	Conductor diameter Ω /km	Outer diameter mm
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.9	4.5
PV-1*2.5 mm²	2.5	48x ø 0.25	2.0	8.06	5.3
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	4.97	6.2
PV-1*6.0 mm²	6.0	81x ø 0.3	3.3	3.52	7.2
PV-1*10.0 mm²	10.0	200x ø0.25	4.4	2.12	8.3
PV-1*16 mm²	16.0	224x ø 0.3	5.2	1.95	9.5
keyword	DC Solar Cable	Solar Cable	solar pv cable	esolar power cable	solar panel cabl

Specification

Lable: Photovoltaic Cables Solar
