Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

2025-07-09 11:38:25

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Main Features :
Serial No. : monica0753

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-TR120 Professional Handheld Thermal Imager High Resolution High Sensitivity Waterproof Industrial Use Thermal Imager

Product descriptions from the supplier

Specification

item	value
Warranty	1 year
Customized support	OEM
Place of Origin	China，Guangdong
Brand Name	Mileseey
Model Number	TR120
Product name	Thermal imager
Size	2389585.5mm
Weight	540g

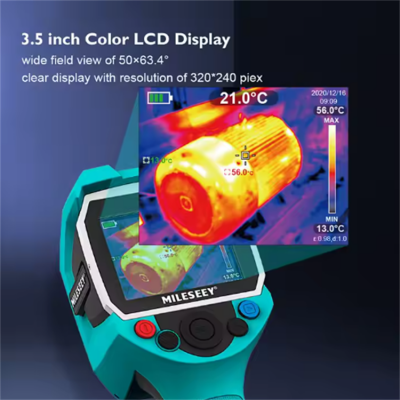

Display Size	3.5 inch
Display Resolution	320*240
Display Mode	Thermal image,Visible image,MIF blending image
Thermal Imaging Pixel	10800(120*90)
Spectral Response Band	8~14μm
Pixel Size	17μm
Sensitivity	<60mk

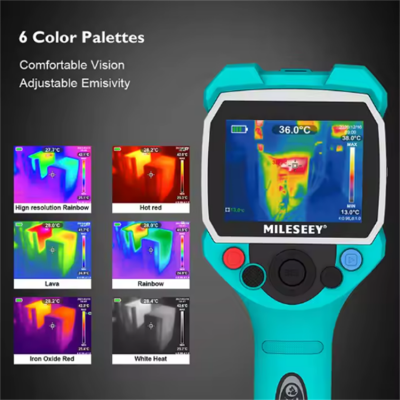

Palette	Six color palettes
Power supply	5000mAh lithium battery/3.7V
Communication interface	Type-C USB
LED lighting	High power white LED
IP level	IP65
Working temperature	-10℃~50℃
Storage temperature	-40℃~70℃
Fall prevention	1.5m
Video output	×
High and low temperature alarm	√

Detailed Images

Lable: Handheld Thermal Imager
