Musktool-TP7-DC10 LCD Display Auto Bakery Digital Oven Thermostat Temperature Controller

Main Features :
Serial No. : monica0466

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

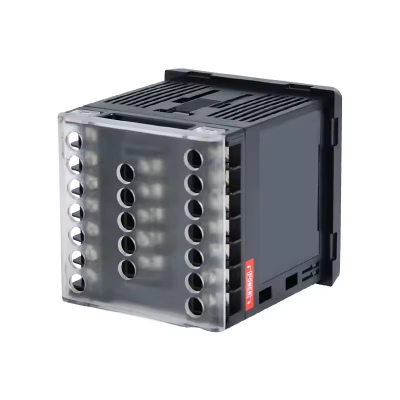

Musktool-TP7-DC10 LCD Display Auto Bakery Digital Oven Thermostat Temperature Controller

Characteristic

Segment LCD display, Super brightness backlight,wide viewing angle.

Short housing design, save installation space.

Multi input signals, multi dimensions,multi control outputs for option.

With measurement display, control output, alarm output, analog output, RS485

communication function

Multi PlD algorithm for option, and with auto tune function.

Multi PlD algorithm for option, and with auto tune function. This meter is applicable to industrial machinery, machine tools, general measuringinstruments and equipment.

Description

Model Number	TP7-DC10
Product name	Intelligent Temperature Controller
Sampling speed	2 times per second
Relay capacity	AC 250V /3A Life of rated load>100000 times
Power supply	AC/DC 100 ~ 240V (85-265V)
SSR output	DC 24V impulse level, load<30mA
Current output	DC 4~20mA load<500Ω,temperature drift 250PPM
Communication port	RS485 port Modbus-RTU protocol, maximum input:30units
Insulation impedance	Input, output, power to housing>20MΩ
Weight	About 400g
Shell material	PC/ABS (flame class UL94V-0)

Lable: Musktool-TP7-DC10 LCD Display Auto Bakery Digital Oven Thermostat Temperature Controller
