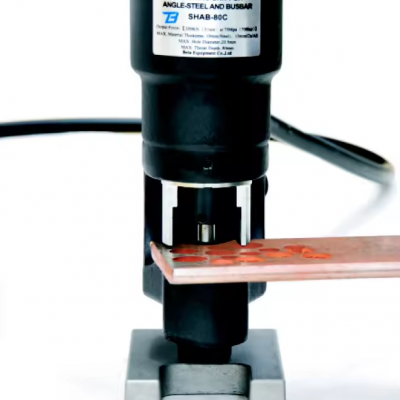

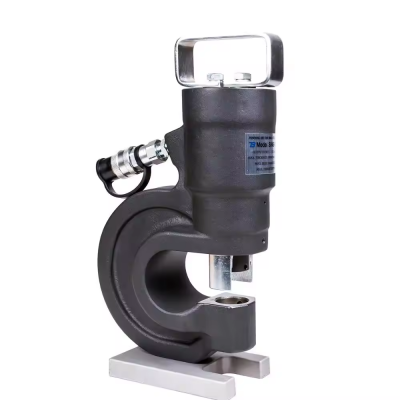

Xtester-SHAB-80C Hydraulic Busbar Cutting Punching Bending Machine Thickneed Max. 13mm
Characteristic
1.Punch angle steel in L shape, I-beam in H shape, flat steel plate, Cu and Al busbar |
2.Body is made of high strength steel |
3.Quick punching with smooth punching surface without burr; positioning plate design for precise location without offset |
4.Make punching safe and clean without punching chipping |
| 5.Portable for mobile operation, also suitable to fix in workshop for batch cut work |
| 6.Throat depth 80mm, punching work finished quicker and easier |
| 7.Equipped with quick coupler for easy disassembly |
| 8 Powered by single acting hydraulic pump |
Technology features
Model | SHAB-80C |
| Output Force | 31T |
| Rated Pressure | 700bar |
Punching Thickness | Max. 13mm Cu/Al Max. 10mm Steel |
| Throat Depth | 80mm |
| Standard Accessories | Ø10.5, 13.5, 17.5, 20.5mm; |
| Optional Accessories | Ø8.5, 11.5, 15.5, 18.5mm |
| Weight | 13.5kg |
| Packing | Steel Case |
Description
| Product Name | Hydraulic punching machine |
| Model Number | SHAB-80C |
| Punchining thickness | Max 13mm Cu/Al Max.10mm steel |
| Output Force | 31T |
| Warranty | 12 Months |
| Weight | 13.5kg |
| Packing | steel case |
| Brand | Bete |
| Standard accessories | 10.5 13.5 17.5 20.5 |
| Optional accessories | 8.5 11.5 15.5 18.5 |
