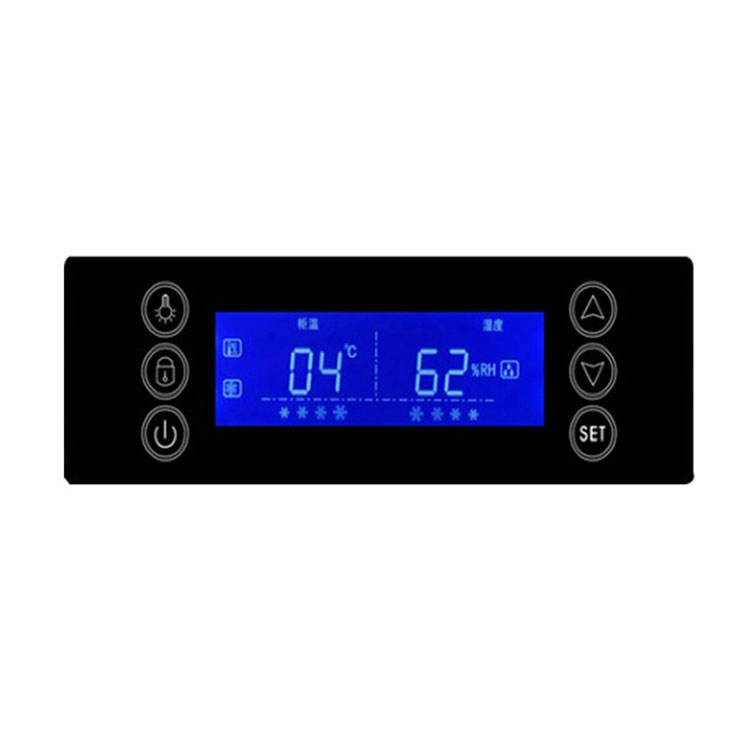

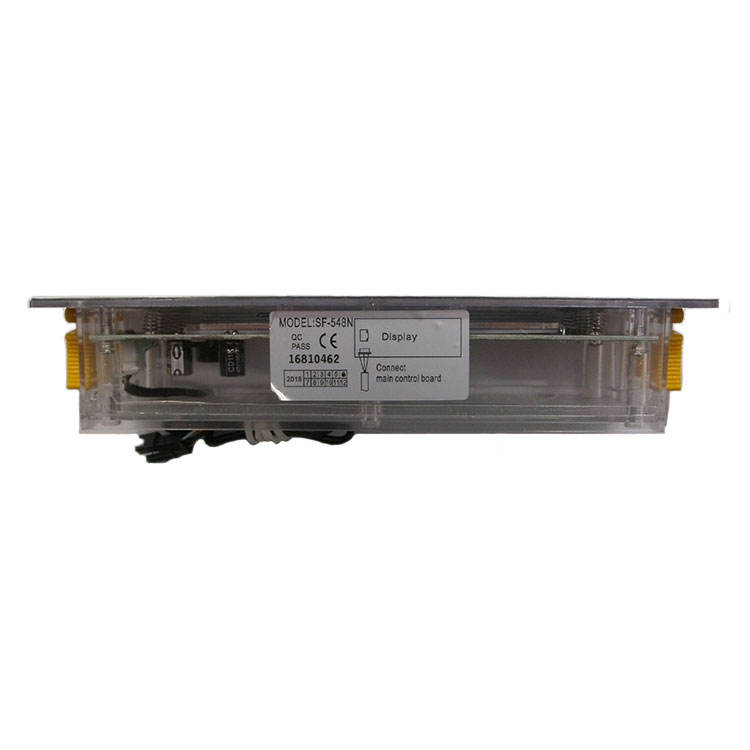

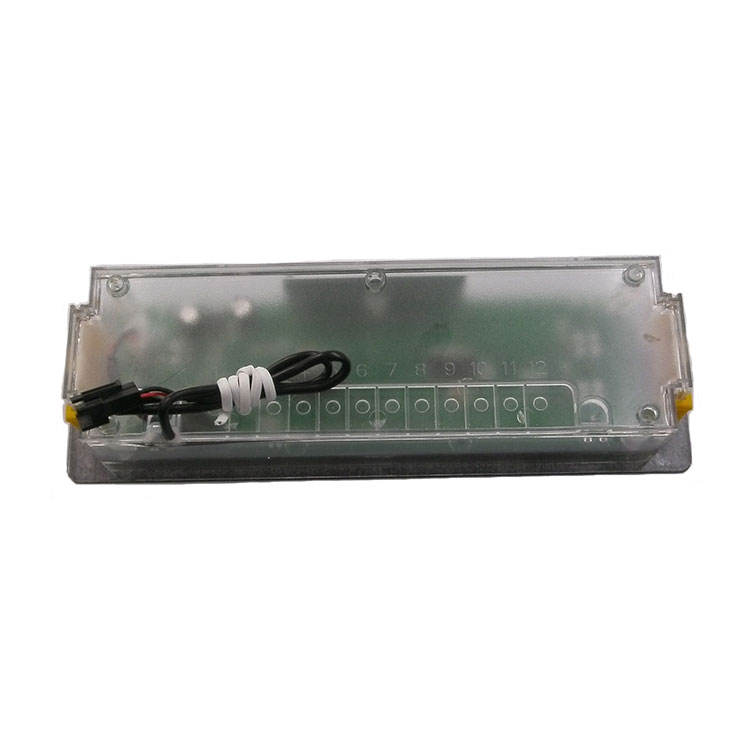

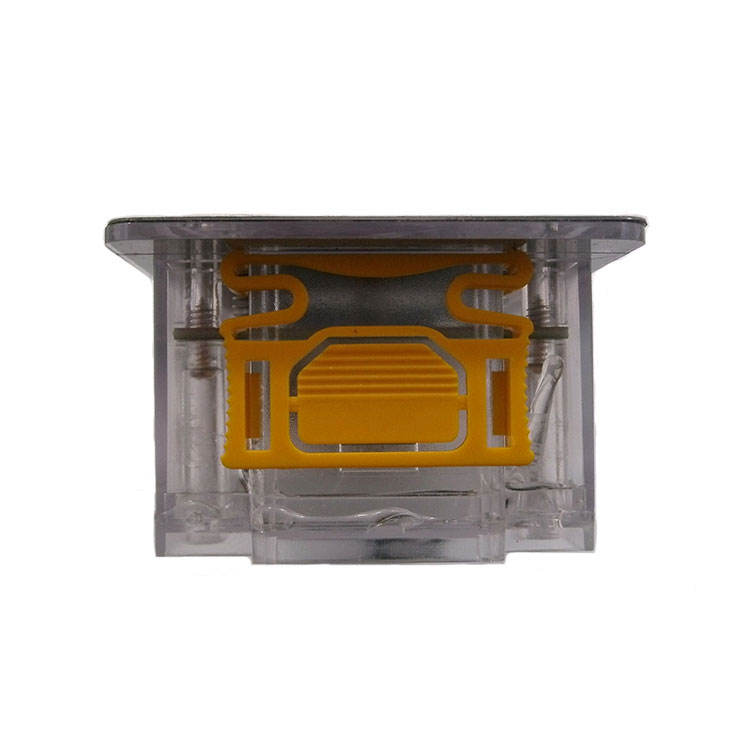

Musktool-SF-548N Manual Automatic Touch Screen Wine Cabinet Temperature Humidity Controller with Sensor
Product description
| 1.Mini-sized and integrated intelligent control. 2.Temperature display/Temperature control 3.Automatic heating and cooling control/Humidity display 4.Humidity control/ Manual, automatic defrost 5.Illumination control/Evap.Fan control 6.Parameter looking/Value storing/Self testing |
Technical data
| 1.Humidity sensor: one, 2m(L) (Accuracy:±1%) 2.Range of temperature display: -45~150℃ Resolution: 1℃ 3.Range of set temperature : 5~25℃ Factory: default:15℃ Control step value:1℃ 4.Range of humidity display:0~100%RH Resolution:1%RH 5.Range of set humidity:0~95%RH Control step value:1%RH 6.Temperature sensor:2NTC,2m(L), regardless of positive and negative (Accuracy:±1%) 7.Compressor: N.O.30A/250VAC Heater: N.O.10A/250VAC Evap.Fan: N.O.5A/250VAC Humidifier: N.O.5A/250VAC Light: N.O.5A/250VAC Sterilizer: N.O.5A/250VAC 8.Display panel dimension:100mm(Length)×40mm(Width)×1.6mm(Depth) 9.Main frame dimension:150mm(Length)×130mm(Width)×55mm(Depth) |
Parameters
| Parameter | Function | Set range | Default |
| E1 | Lower setpoint limit | 5℃~Set temp. | 15℃ |
| E2 | Higher setpoint limit | Set temp.~25℃ | 25℃ |
| E3 | Temp.hysteresis | 1~10℃ | 1℃ |
| E4 | .start delay time | 0~180seconds | 120sec |
| E5 | Humidity hysteresis | 1%RH~30%RH | 1%RH |
| E6 | Humidity offset | -10%~10%RH | 0%RH |
| E7 | Offset on room temp. | -20~20℃ | 0℃ |
| E8 | Offset on evap.temp. | -20~20℃ | 0℃ |
| F1 | Max.Defrost duration | 1~60Min | 20Min |
| F2 | Defrost start temp | -10~20℃ | -1℃ |
| F3 | Defrost interval time | 0~24Hr | 2Hr |
| F4 | Defrost temination temp. | 0~20℃ | 8℃ |
| d1 | Fan delay time | 1~10Min | 1Min |
| d2 | Alarm delay time | 0~95seconds | 20sec |
| HA | High temp.alarm | 0~40℃ | 40℃ |
| Lo | Low temp.alarm | 0~20℃ | 8℃ |
| C2 | Displaying during defrost | 0=Normal display 1=Last value before defrost | 0 |
| p1 | Sterilization cycle | 0~24Hr (0=cancel) | 2Hr |
| p2 | Sterilization time | 1~60Min | 20Min |
| LE | Backlight mode control | 0=energy saving mode 1=energy disspation | 0 |
