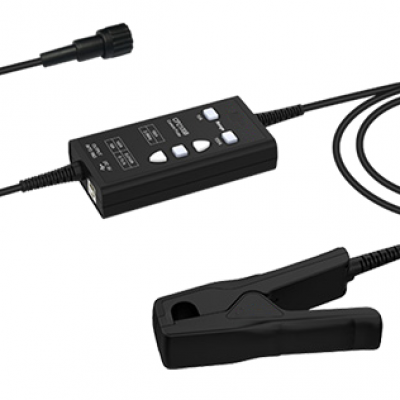

Musktool-Low Frequency AC/DC Current Probe CP2100A/CP2100B Series
Product Overview
| The CP2100 series is a current probe for DC and AC. It has a split design, a nice look, uses BNC, suits oscilloscopes and multimeters. The max current is 100Apk (70.7Arms), with 2 models: CP2100A (DC~800kHz), CP2100B (DC~2.5MHz) and 10A/100A ranges. It has auto and manual zero adjustment, is USB-powered, and is used in motor drives, power frequency, inverters, etc. |
Characteristics
Model | CP2100A | CP2100B |
Bandwidth | DC~800kHz | DC~2.5MHz |
Rise Time | ≤ 437.5ns | ≤ 140ns |
Ranges | 10A/100A | |
Output sensitivity | 0.1V/A(10A); 0.01V/A(100A) | |
DC accuracy (typical) | 3%±50mA(10A); 4%±50mA(100A，500mA~40Apk) 15%(100A，40Apk~100Apk) | |
Signal delay | 100ns | |
Current measurement range | 50mA~10Apk(10A); 1A~100Apk(100A) | |
Max. measuring current | 100Apk，70.7Arms(DC+AC pk) | |
Max. working voltage | CAT III 300V CAT II 600V | |
Max. float voltage | CAT III 300V CAT II 600V | |
Max. conductor diameter | 13mm | |
Overload alarm | Buzzer beeps Button flashes | |
Power supply | DC 5V | |
Net weight | 290g | |
Package weight | 1000g | |
Operating temperature | 0~50° C | |
Operating humidity | 5%~95% (0~40℃ , No condensation) 5%~65% (40℃ ~50℃ , No condensation) | |
CE Standard | EN 61010-2-032 | |
EMC Standard | EN 61326-1:2013， EN 61326-2-1:2013 | |
