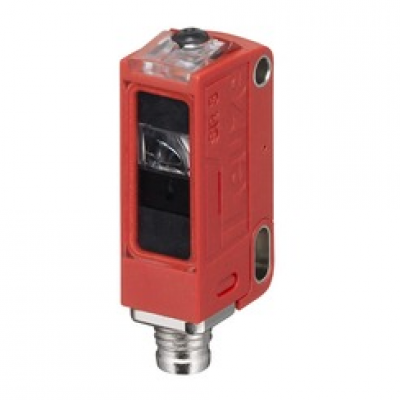

Xtester-KRT3CW.Q3S2/4T-M8 Contrast sensor Part no.: 50148513

Main Features :
Serial No. : monica0386

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-KRT3CW.Q3S2/4T-M8 Contrast sensor Part no.: 50148513

Characteristic

Flexible thanks to multiple types of light in a single housing: multicolor (red, green or blue light), white light and laser generated red light.

Reliable detection of even the slightest contrast differences and of print marks even on glossy and highly reflective
materials.

Highly precise and reliable identification of contrasts with a short response time of 50 µs (laser: 125 µs) and minimal signal jitter for optimum machine throughput.

High mounting flexibility and easy integration even in tight installation spaces due to a compact and robust housing with a high degree of protection of IP 67 and IP 69K as well as ECOLAB certification.

Multiple teach modes are available for selection, thereby ensuring the appropriate adjustment routine for easy and fast machine commissioning (static or dynamic 2-point teach, static 1-point teach).

IO-Link for easy integration of additional functions into the machine control, for example easy format changeover due to recipe management, parameterization of the sensor, or locking of the teach button to prevent tampering

Technology features

Protective circuit	Polarity reversal protection Short circuit protected
Supply voltage UB	12 ... 30 V, DC, Incl. residual ripple
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 25 mA
Repeatability	0.02 mm
Operating range	14.5 mm ± 2 mm
Beam path	Focused
Light source	LED, White
Transmitted-signal shape	Pulsed
LED group	Exempt group (in acc. with EN 62471)
Light spot size [at sensor distance]	1.5 mm x 4 mm [14.5 mm]
Light spot orientation	Horizontal
Type of light spot geometry	Rectangular
Light beam exit	Front
Focus	Fixed
Wavelength	400 ... 750 nm
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C

Description

Design	Cubic
Dimension (W x H x L)	11.4 mm x 34.2 mm x 18.3 mm
Housing material	Plastic
Plastic housing	PC-ABS
Lens cover material	Plastic / PMMA
Net weight	10 g
Housing color	Red
Type of fastening	Via optional mounting device
Compatibility of materials	ECOLAB

Lable: Xtester-KRT3CW.Q3S2/4T-M8 Contrast sensor Part no.: 50148513
