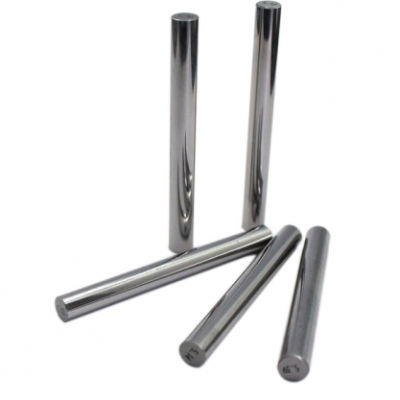

Xtester-High Precision Measuring tool Pin Gauges Metric Pin Gage Set
Introduction
| · Available size range: 0.1-20mm. · Dimensional accuracy: 0.5μm, 1μm, 2μm. · Material: GCr15; Ambient temperature: standard temperature 20°C/68F°. | ||
Specification
| SET. | |||||
| Order.No. | Dia.(mm) | Step | Accuracy | Unit | Quanlity |
| 4166-0D | 0.20,0.21,0.22,...0.50 | 0.01mm | ±1μm | PCS | 31 PCS/CASE |
| 4166-1 | 0.50,0.51,0.52,...1.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-1D | 1.00,1.01,1.02,...1.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-2 | 1.50,1.51,1.52,...2.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-2D | 2.00,2.01,2.02,...2.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-3 | 2.50,2.51,2.52,...3.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-3D | 3.00,3.01,3.02,...3.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-4 | 3.50,3.51,3.52,...4.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-4D | 4.00,4.01,4.02,...4.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-5 | 4.50,4.51,4.52,...5.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-5D | 5.00,5.01,5.02,...5.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-6 | 5.50,5.51,5.52,...6.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-6D | 6.00,6.01,6.02,...6.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-7 | 6.50,6.51,6.52,...7.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-7D | 7.00,7.01,7.02,...7.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-8 | 7.50,7.51,7.52,...8.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-8D | 8.00,8.01,8.02,...8.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-9 | 8.50,8.51,8.52,...9.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-9D | 9.00,9.01,9.02,...9.50 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| 4166-10 | 9.50,9.51,9.52,...10.00 | 0.01mm | ±1μm | PCS | 51 PCS/CASE |
| SET. | |||||
| Order.No. | Dia.(mm) | Step | Accuracy | Unit | Quanlity |
| 4166-2S | 1.00,1.01,1.02,...2.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-3S | 2.00,2.01,2.02,...3.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-4S | 3.00,3.01,3.02,...4.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-5S | 4.00,4.01,4.02,...5.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-6S | 5.00,5.01,5.02,...6.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-7S | 6.00,6.01,6.02,...7.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-8S | 7.00,7.01,7.02,...8.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-9S | 8.00,8.01,8.02,...9.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
| 4166-10S | 9.00,9.01,9.02,...10.00 | 0.01mm | ±1μm | PCS | 101 PCS/CASE |
