Musktool-HM020 Handheld Digital Microscope

Summary

HM020 is a portable high-definition electronic magnifier focusing on identification, repair, quality inspection, and jewelry observation. Its core advantages lie in three major dimensions: high-definition imaging, flexible lighting, and convenient use.

I. Core Imaging Technology

High-Definition Image Output: Equipped with a 16-megapixel CMOS lens, supporting multi-resolution adjustment from 2MP to 16MP, with JPG photo format. It captures details accurately, meeting the needs of fine observation such as jewelry textures and repair solder joints.
High-Magnification Clear Zoom: The maximum magnification reaches 100x. Combined with a 4P+IR lens structure and F4.5 aperture design, the magnified image has no obvious distortion and high color reproduction.
Intuitive Display Experience: Equipped with a 2.0-inch IPS high-definition screen with 1 million real pixels, avoiding eye fatigue caused by traditional magnifiers and making long-term observation more comfortable.

II. Flexible Lighting System

Dual-color supplementary light design: Equipped with 8 built-in LED lights, including 4 white light lamps and 4 purple light lamps. The white light ensures the true color presentation, while the purple light is suitable for long-time observation without dazzling the eyes.
Adapting to light in multiple scenarios: The brightness of the light can be adjusted. Even in dim environments, it can provide uniform illumination, eliminate shadow interference, and meet the observation needs of different scenarios.

III. Portability and Battery Life Design

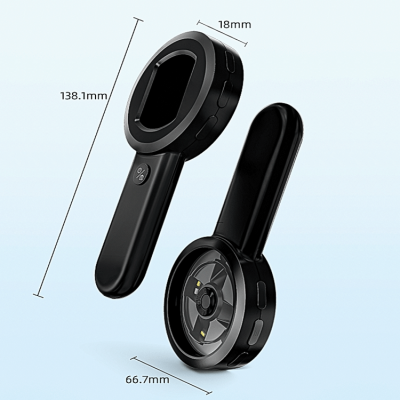

Ultimate Lightweight: The body size is only 138×66×18mm, weighing approximately 57g, which can be held with one hand, making it easy to carry to mobile scenarios such as outdoors and workshops.
Long-lasting Battery Configuration: Equipped with a built-in 3.7V 500mAh lithium battery, it takes only 1 hour to fully charge and can work continuously for 1.5 hours. It supports USB-C interface charging for convenient use.
Practical Auxiliary Accessories: Compatible with an adjustable bracket to free hands, suitable for long-time quality inspection, identification and other scenarios.

IV. Multi-functional Expansion and Compatibility

Multi-mode recording: Supports photo and video recording functions, which can record observation details in real-time for subsequent analysis or sharing.

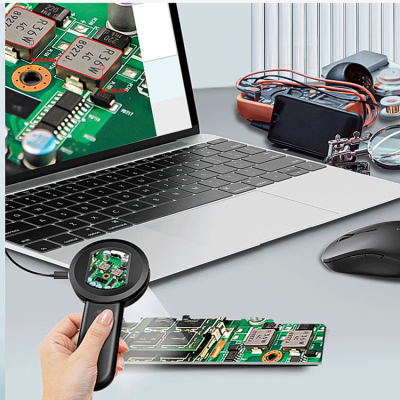

Cross-device connection: Equipped with Type-C/USB 2.0 interfaces, it supports connection to computers with Windows and Mac OS systems, enabling large-screen viewing and data export.
Intelligent and convenient operation: Supports automatic white balance and automatic exposure. The manual focus mode precisely controls the observation focus, and the multi-language interface adapts to the needs of different users.

V. Durability and environmental adaptability

Reliable Material Craftsmanship: The body is made of ABS material, with a compact and wear-resistant structure, suitable for slight collisions during daily mobile use.
Wide Temperature and Humidity Adaptation: The operating temperature range is -10℃~55℃, and the humidity is 30%~85% RH, which is suitable for most indoor and outdoor use environments.
