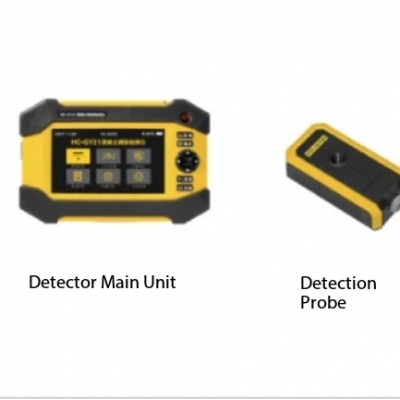

Musktool-HC-GY21 Concrete Reinforcement Detector

2026-03-12 11:44:48

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Product Overview

Reinforcement detectors for concrete are mainly used in concrete structure engineering to detect the position, distribution and direction of reinforcing bars,
the thickness of the protective layer, and the diameter of the reinforcing bars.
They are used for the acceptance testing of the construction quality of concrete structures in buildings.
They are used for the detection of reinforcing bars in structures such as bridges and tunnels.
They are used to evaluate the safety and durability of structures under construction.
They are used for the detection of reinforcement quantity when evaluating and reconstructing existing structures.
They are used to detect the direction and distribution of ferromagnetic bodies and conductors in non-magnetic media.

Real-time display of protective layer thickness and steel bar signal images, with automatic locking of the minimum value;
Sensor upgrade, significantly improved detection accuracy, upgraded signal processing algorithm, consistent and stable data;
Built-in Bluetooth chip, connecting Haichuang mobile APP to realize real-time on-site data upload;
Compact size, 5-inch high-definition full-color LCD screen, 32-bit CPU processor, smoother core operation speed, more efficient detection and use;

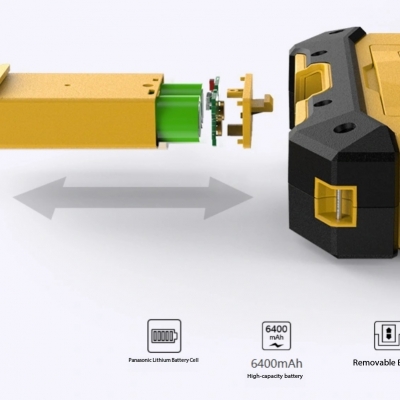

Plug-in high-capacity lithium battery, low-power design, can be used continuously for more than 28 hours after being fully charged;
Supports JGJ detection function, meeting the requirements of detection specifications;
Supports remote instrument software upgrade, enjoying convenient service support, PC-side driver self-adaptation, no need for driver installation;
Professional data processing software, easily generating detection reports.

产品

Real-time display of protective layer thickness and steel bar signal images, with automatic locking of the minimum value;
Sensor upgrade, significantly improved detection accuracy, upgraded signal processing algorithm, consistent and stable data;
Built-in Bluetooth chip, connecting Haichuang mobile APP to realize real-time on-site data upload;
Compact size, 5-inch high-definition full-color LCD screen, 32-bit CPU processor, smoother core operation speed, more efficient detection and use;
Plug-in high-capacity lithium battery, low-power design, can be used continuously for more than 28 hours after being fully charged;
Supports JGJ detection function, meeting the requirements of detection specifications;
Supports remote instrument software upgrade, enjoying convenient service support, PC-side driver self-adaptation, no need for driver installation;
Professional data processing software, easily generating detection reports.

Range of steel bar diameter settings	∅6mm~∅50mm
Maximum measuring range	First range 6-95mm Second range 7-190mm
Maximum allowable error of protective layer thickness	±1(mm) 6-80mm ±2(mm) 81-120mm ±4(mm) 121-190mm
Applicable range of diameter estimation	∅6mm~∅50mm
Maximum error in diameter estimation	±1 specification
Scanning range	Boundless
Storage quantity	2 million measuring points
Data correction function (spacing/thickness)	√
Data transmission interface	USB
Power supply mode	Rechargeable lithium battery
