Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool

Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool

Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool

Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool

Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool

2024-07-09 17:00:09

Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool

Main Features :
Serial No. : monica0318

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool

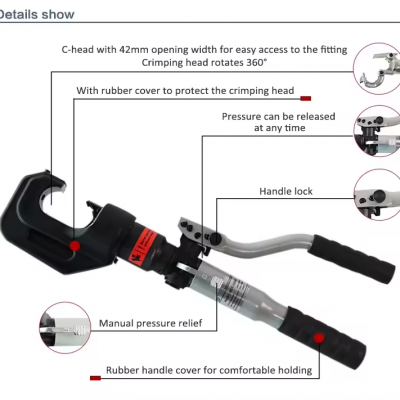

Characteristic

1. Stroke up to 42mm;max. crimping up to 400mm²

2. C-shape crimping head .rotates 360°

3. Two stage hydraulics

4. Automatic retraction when crimp is finished

Technology features

Product Name	Hand Crimping Tool
Model Number	HCT-12042
Crimping capacity	Cu/Al: 400/300mm2
Stroke	42mm
Output Force	12 Tonne
Max Pressure	700bar
Weight	6.1kg
Pressure Relief	Automatic
Head Rotation	355°

Description

Output force	12T
Rated pressure	700bar
Crimping capacity	Max 400mm2
Standard dies	Cu50-400mm2
Weight	6.1kg
Packing	Plastic Case

Lable: Xtester-HCT-12042 700bar 400mm2 Crimping 12T Manual Hydraulic C Clamp Tool
