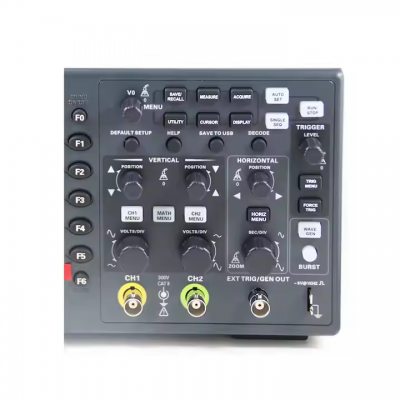

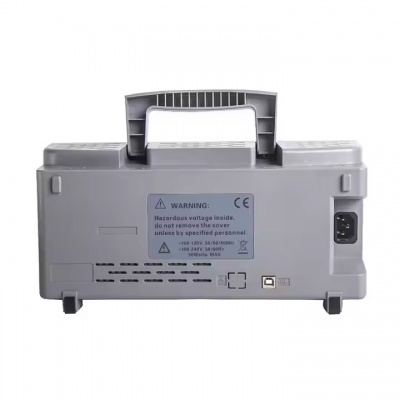

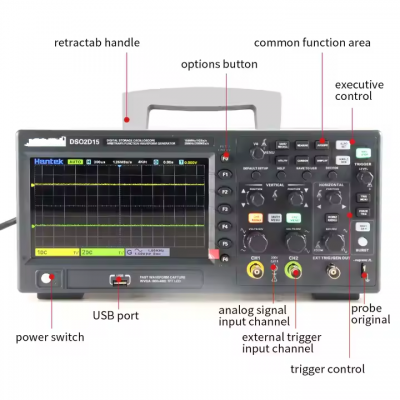

Msktool-DSO2C10 DSO2D10 DSO2C15 DSO2D15 Digital Storage Oscilloscope 100MHz/150MHz Dual Channel USB Portable Multimeter Tester
Product descriptions from the supplier
Features:
| 1) 2 channels which are respectively controlled by independent knobs |
| 2) 150 MHz analog channel bandwidth |
| 3) Sampling rate up to 1 GSa/s |
| 4) 8M memory depth |
| 5) Vertical range 2mV/div ~ 10V/div |
| 6) Built-in 1 CH 25MHz waveform generator(ONLY DSO2D10 DSO2D15) |
| 7) Vertical resolution: 8bit |
| 8) Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC |
| 9) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN |
| 10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures |
| 11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator |
| 12) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc. |
| 13) 2 sets of digital voltmeters |
| 14) Support threshold testing, free measurements within the screen |
| 15) Abundant SCPI remote command control |
| 16) USB Host/Device. |
Please Note: DSO2C10 DSO2D10 do not have waveform generator function.
Lable:
Portable Multimeter Tester
