Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter

Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter

2025-07-01 10:01:45

Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter

  • Main Features :
  • Serial No. : monica0702
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-DDS1946-2P Bidirectional Smart Energy Meter with Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter

Product Introduction

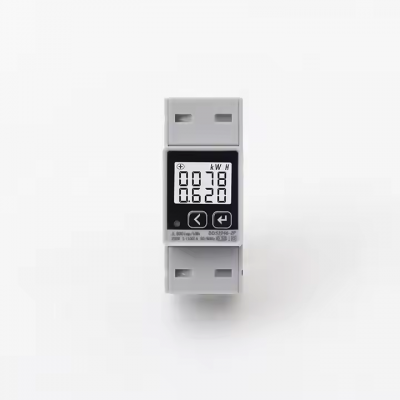

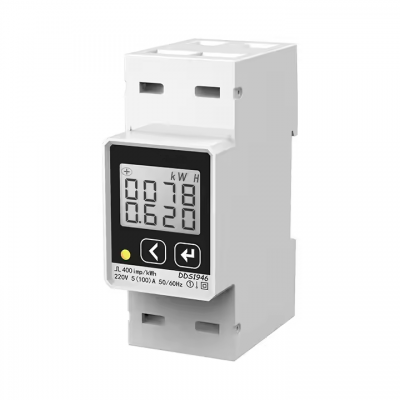

Product name: Elecnova single phase energy electronic kwh meter Smart Single Phase Energy Meter for ev charger

DDS1946-2P din rail mounted AC Digital single phase smart electricity meter are designed and produced according to user's real electricity consumption situation by adopting advanced energy measurement IC and using digital sampling processing and SMT technologies. They adopt modularity structure with the features such as small volume, convenient installation and reliable working.

图片关键词

图片关键词

Technical Parameter


DDS1946-1PDDS1946-2PDDS1946DSS1946DTS1946
DDSF1946-1PDDSF1946-2PDDSF1946DSSF1946DTSF1946
Normal Voltage230V230V230V3*400V3*230/400V

Direct input5(40)A5(100)A5(100)A5(100)A5(100)A

CurrentVia CT input--1.5(6)A1.5(6)A1.5(6)A
Accuracy
Class 1(Optional:Class 0.5S)
Frequency
45Hz~65Hz
Voltage Range
0.8Un~1.2Un

Direct input0.004Ib

Start CurrentVia CT input0.002In
Consumption<2VA
Energy Pulse1 output, pulse width (80±20%) ms
RTC Error≤0.5s/day
CommunicationRS485, Modbus-RTU, 2-wire, up to 9600bps
IP DegreeFront: IP51
Operating Temperature-10ºC ~ 55ºC
Storage Temperature-25ºC ~ 70ºC
Relative Humidity≤93%
CertificateCE ISO9001,MID
图片关键词




Lable: DDS1946-2P Rail Directional Small Electrical Direct Kwh Bidirectional Smart Energy Meter
