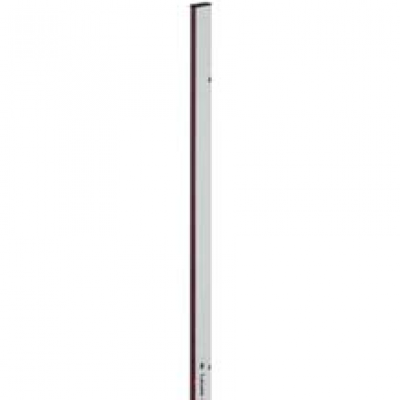

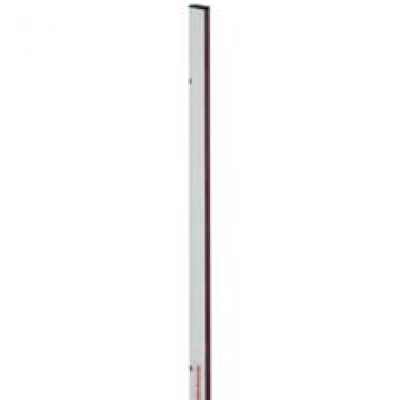

Xtester-CSL505-T25-1475-M8-D6 Light curtain transmitter Part no.: 50144958

Xtester-CSL505-T25-1475-M8-D6 Light curtain transmitter Part no.: 50144958

Xtester-CSL505-T25-1475-M8-D6 Light curtain transmitter Part no.: 50144958

Xtester-CSL505-T25-1475-M8-D6 Light curtain transmitter Part no.: 50144958

Xtester-CSL505-T25-1475-M8-D6 Light curtain transmitter Part no.: 50144958

2024-07-15 17:55:59

Xtester-CSL505-T25-1475-M8-D6 Light curtain transmitter Part no.: 50144958

Main Features :
Serial No. : monica0380

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester-CSL505-T25-1475-M8-D6 Light curtain transmitter Part no.: 50144958

Technology features

Protective circuit	Inductive protection Polarity reversal protection Short circuit protected
Supply voltage UB	18 ... 30 V, DC
Operating principle	Throughbeam principle
Device type	Device type
Application	Application
Operating range	0.3 ... 6.5 m
Operating range	Guaranteed operating range
Measurement field length	1,475 mm
Number of beams	60 Piece(s)
Beam spacing	25 mm
Light source	LED, Infrared
Wavelength	860 nm
Transmitted-signal shape	Pulsed
Minimum object diameter	27.5mm
Type of configuration	Software Via pin assignment

Description

Design	Cubic
Dimension (W x H x L)	10 mm x 27 mm x 1,550 mm
Housing material	Metal
Metal housing	Aluminum
Lens cover material	Plastic
Net weight	40 g
Housing color	Silver
Type of fastening	Through-hole mounting
Special version	Crossed-beam scanning Diagonal-beam scanning Parallel-beam scanning
