Principle Introduction

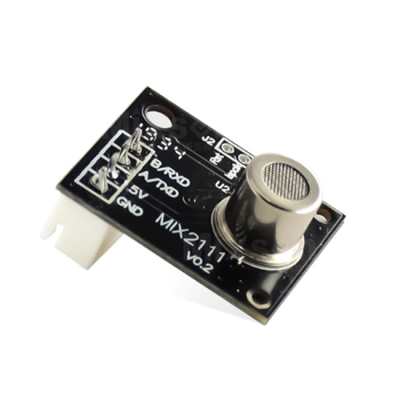

| Xtester-MIX2111 air-quality module adopts semiconductor gas sensor. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity. |
Features
| Lower power consumption High sensitivity, long life Calibrated before shipment Auto-preheating (10sec.-3min.) Faulty auto-diagnosis |
Application
| Air purifier , Automatic fans , HAVC refrigeration , Indoor air quality monitoring , Intelligent integrated ceiling |
Technical Parameters
| Item | Specification |
| Target Gas | TVOC(Formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, smoke of cigarette, essence &etc.) |
| Operating Voltage | 4.8~5.2V DC |
| Operating Current | ＜ 60mA average |
| Preheating Time | ≤ 3 minutes |
| Response Time (T90) | ＜ 20 seconds |
| Working Current | ＜ 60mA |
| Recovery Time | ＜ 60 seconds |
| Long Term Sensitivity Drift | ≤1%/year |
| Operating Conditions | 0～50℃/15～95%RH(no condensation) |
| Storage Conditions | -20～50℃/0～60%RH(no condensation) |
| Size | 24×20×15mm(L×W×H) |
| Weight | ≤ 20g |
| Size | 24×20×15 (mm) |
| Anticipated Using Life | ≥10 years |
Lable:
Air Quality Detection Module
